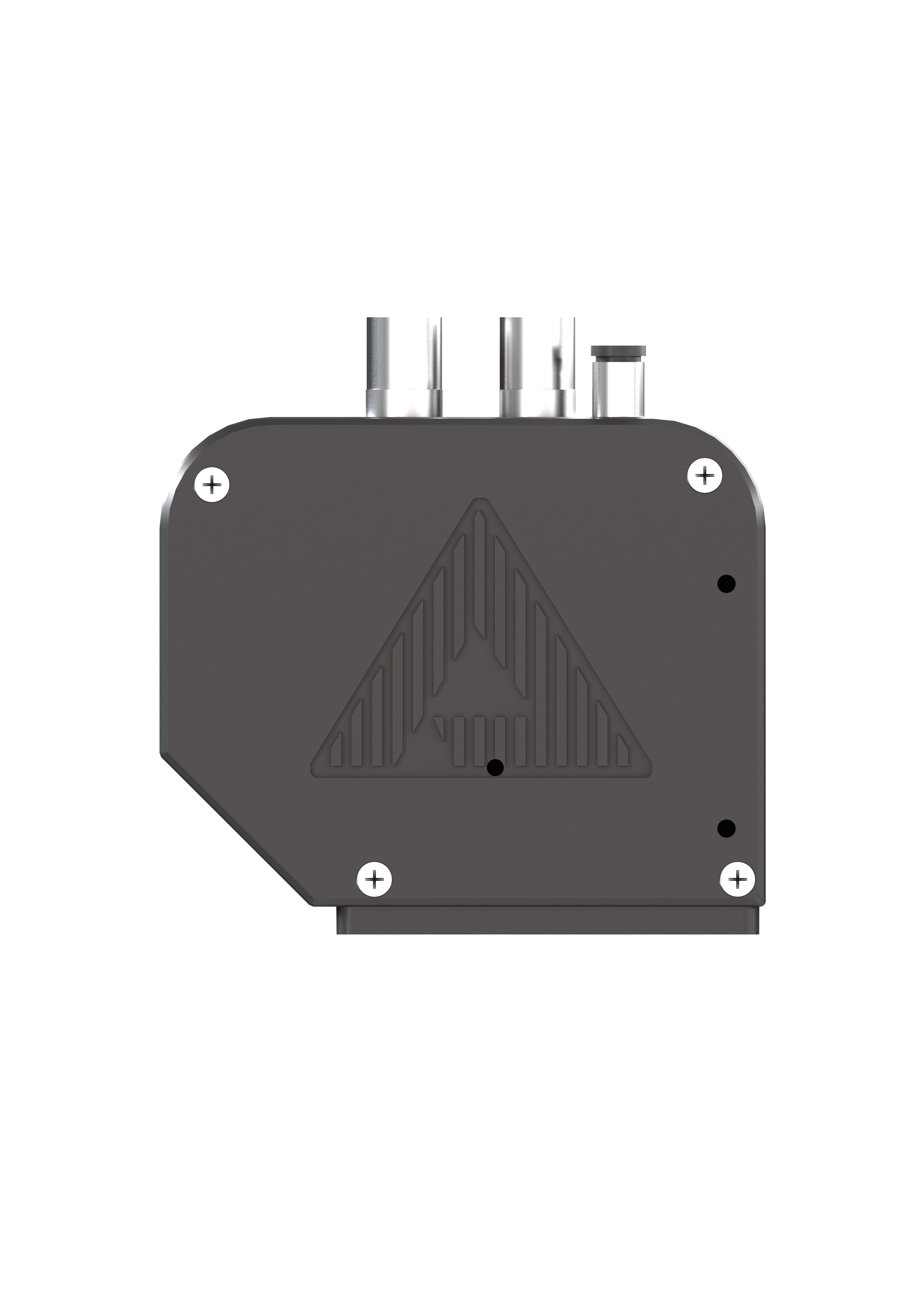

Arc Seam Laser Tracking System

Share:

Inquiry
Features
Specification

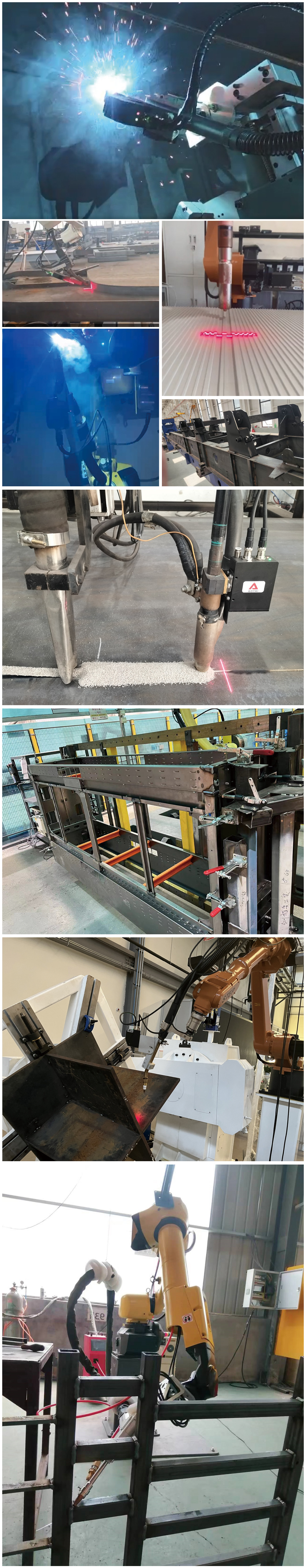

Application
Accessories
Download


  • Cloud Integration: Facilitates off-site data telemetry, cloud-based data archival, real-time analysis, and remote diagnostics.

  • Robust Design: Engineered with superior EMC shielding, making it suitable for adverse environments like dual-wire gas shielded welding. Integrated air-cooling ensures optimal performance in high-temperature scenarios.

  • User-friendly Software Interface: Multilingual UI with procedural parameter configurations.Comprehensive workpiece and JOB database management caters to batch-specific parameter toggling.

  • Precision-Driven Performance: Equipped with state-of-the-art hand-eye calibration algorithms, guaranteeing high fidelity positioning and exceptional interference resilience under high arc luminosity conditions.

  • Seam Versatility: Supports a spectrum from standard seams to user defined template matching.





aTrac-150aTrac-250
Mounting Height (H)150mm250mm
Depth of Field (K)170mm(100-270mm)140mm(200-340mm)
Central Field of View (W)65mm50mm
Minimum Gap Detectable0.5mm0.4mm
Minimum Offset Detectable0.8mm0.8mm
Inbreaking ProtectionIP65IP65
Operating Temperature0-50℃0-50℃
Humidity Adaptability10%-95%10%-95%
ProtocolTCP/IP, ModbusTCPTCP/IP, ModbusTCP
Supported JOB Number1000+1000+
Weight455g515g
Arc Welding TypeGMAW, TIG, SAWGMAW, TIG, SAW
WorkflowSeam Location, Online Tracking, Pre-Scan & WeldSeam Location, Online Tracking, Pre-Scan & Weld
