Solar Inverter

‹

›

‹

  • ASP-25/27/30/33/36/40KTLC

›

ASP-25/27/30/33/36/40KTLC

Share：

Inquiry
Features
Specification

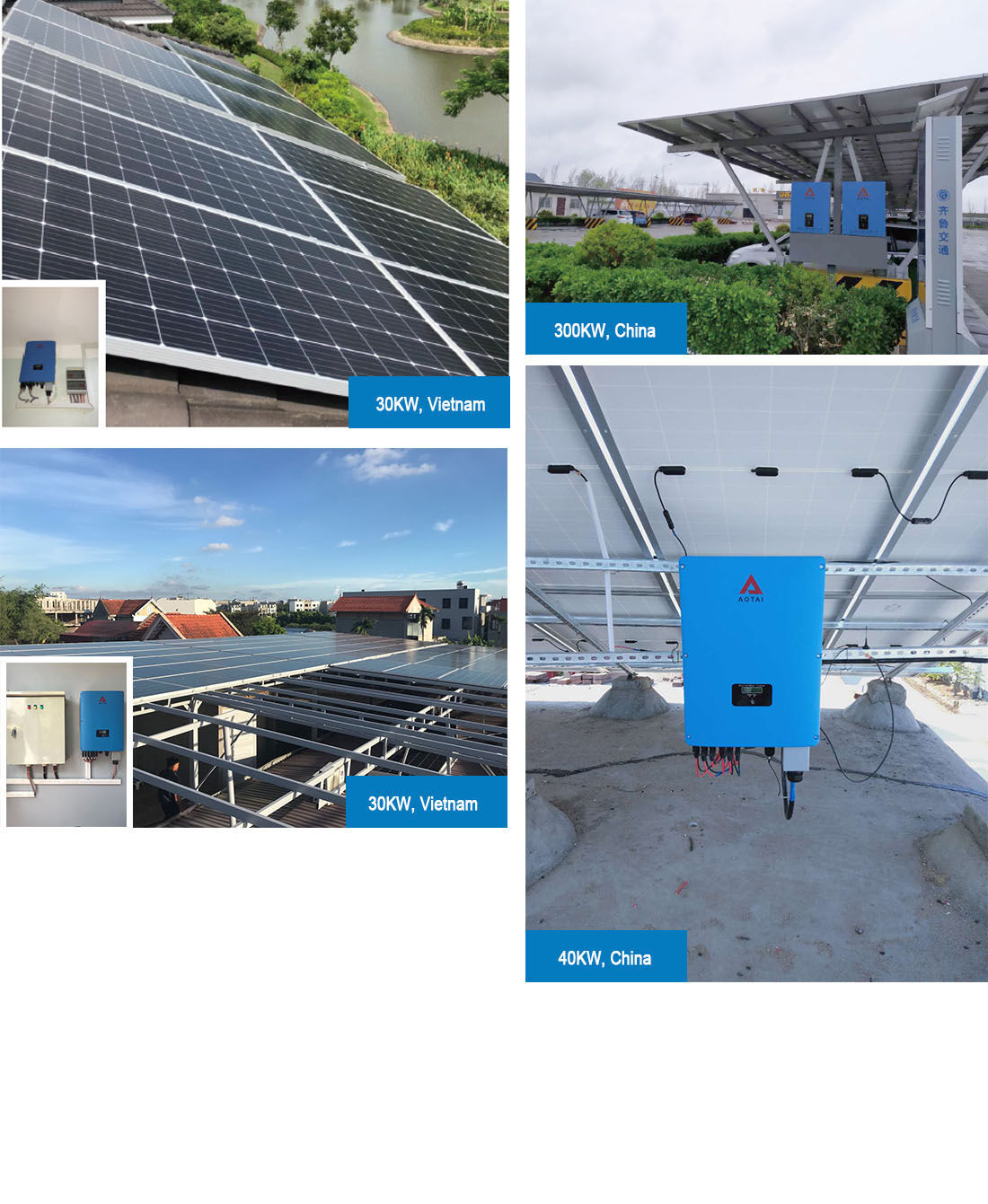

Application
Download

Flexible design

Multi-communication interface: RS485, GPRS(optional),Wifi (optional)

DC breaker, easy to maintain and safe to use

Integrated functions of combiner box& DC lightning protection, reduce system cost for users


Efficient conversion

Transformerless, max. efficiency is up to 98.8%;

Euro. efficiency is up to 98.3%

Total current THD <2%

Three-level SVPWM control technology, increase DC voltage utilization


Grid friendly

LVRT function

Adjustable reactive power, power factor from 0.8 leading to 0.8 lagging

Active and passive anti islanding protection


Excellent qualities

CQC Golden Sun Certification, TUV Certification, SAA Certification, CE Certification

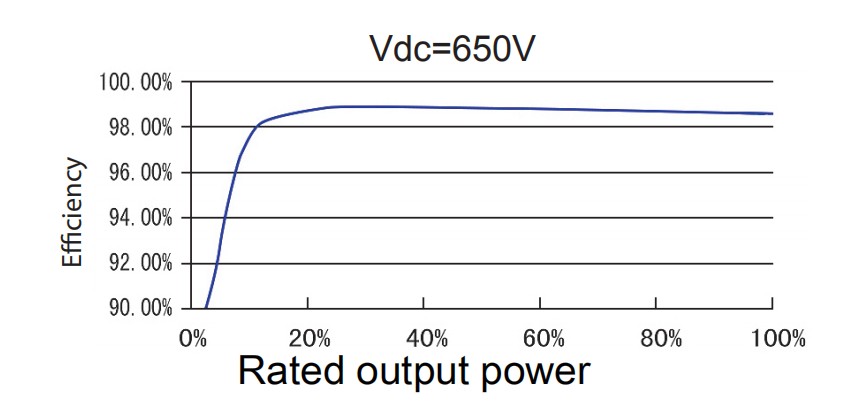

EFFICIENCY CURVE

图片 9.png



Model Name25KTLC27KTLC30KTLC33KTLC36KTLC40KTLC
Input
Max. DC input power30000W32400W36000W39600W43200W48000W
Max. DC input voltage1000V
Max. DC input current2X28A2X30A2X33A2X36A2X40A
MPPT voltage range250~950V
Recommended MPP operating voltage650V
No.of MPPT2
Max. no. of strings per MPPT34
Output
Rated output power25000W27000W30000W33000W36000W40000W
Max. output power27.5KVA29.7KVA33KVA36.3KVA39.6KVA44KVA
Max. output current42A45A50A52.5A57A61A
Rated grid voltage400V
Grid voltage range310~480Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD< 2% (Under the rated power)
Power factor>0.99(under the rated power)/0.8 leading ~ 0.8 lagging
DC current injection< 0.5% (Under the rated power)
System data
Max. efficiency98.50%98.60%98.70%98.70%98.80%98.80%
Euro. efficiency98%98.10%98.20%98.20%98.20%98.30%
Humidity range0-95% non-condensing
Cooling typeIntelligent forced air cooling
Temperature range-25~+60°C
Power consumption at night< 1W
Max. working altitude4000m(Operation with derating above 2000m)
DisplayTwo line LCD/Two LEDS/One voice operated switch
Communication interfaceRS485/GPRS(optional)/Wifi(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchYes
Mechanical data
Dimensions (WxHxD)478x752x208mm
Weight39Kg
Protection classIP65 (outdoor)
Standard
Grid-connected standardNB/T32004-2018; GB/T19964-2012
Safety standardNB/T32004-2018; IEC 62109-1/2
Electromagnetic compatibilityIEC 61000-6-2/4


25 -40KTLC.jpg
