Solar Inverter

‹

›

‹

  • ASP-8/10/12KTLC

›

ASP-8/10/12KTLC

Share：

Inquiry
Features
Specification
Application
Download

Flexible design

Multi-communication interface: RS485, GPRS(optional), Wifi (optional)

DC breaker, easy to maintain and safe to use

Digital DSP control technology


Efficient conversion

Transformerless, max.efficiency is up to 98.1%;

Euro. efficiency is up to 98%

Total current THD <2%

Three-level SVPWM control technology, increase DC voltage utilization


Grid friendly

Adjustable reactive power, power factor from 0.8 leading to 0.8 lagging

Active and passive antiislanding protection


Excellent qualities

CQC Golden Sun Certification, TUV Certification, SAA Certification, CE Certification

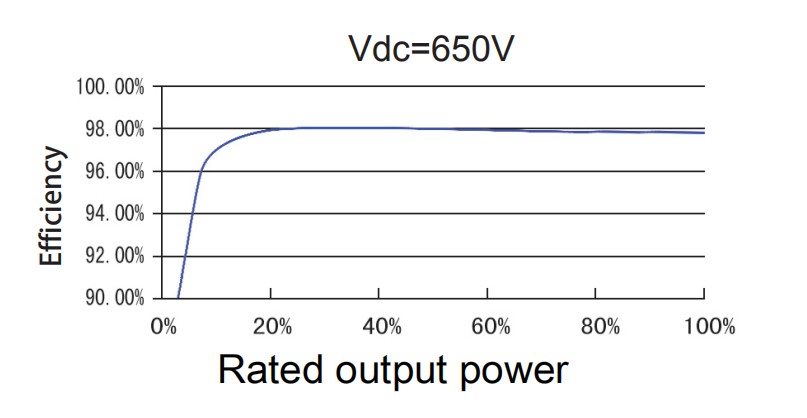

EFFICIENCY CURVE

图片 3.png



Model Name8KTLC10KTLC12KTLC
Input
Max. DC input power 10400W13000W15600W
Max. DC input voltage1000V
Max. DC input current11/1122/11A
MPPT voltage range250~950V
Recommended MPP operating voltage650V
No.of MPPT2
Max. no. of strings per MPPT12/1
Output
Rated output power8000W10000W12000W
Max. output power8.8KVA11KVA13.2KVA
Max. output current13A16A19.2A
Rated grid voltage400V
Grid voltage range310~480Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD< 2% (Under the rated power)
Power factor>0.99(under the rated power)/0.8 leading ~ 0.8 lagging
DC current injection< 0.5% (Under the rated power)
System data
Max. efficiency98.5%
Euro. efficiency98%
Humidity range0-95% non-condensing
Cooling typeAir cooling
Temperature range-25~+60
Power consumption at night< 1W
Max. working altitude4000m (Derating above 2000m)
DisplayTwo line LCD/Two LEDS/One voice operated switch
Communication interfaceRS485/GPRS(optional)/Wifi(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchYes
Mechanical data
Dimensions (WxHxD)517x510x191mm
Weight25Kg
Protection classIP65
Standard
Grid-connected standardIEC 61727.IEC 62116
Safety standardIEC 62109-1/2
Electromagnetic compatibilityIEC 61000

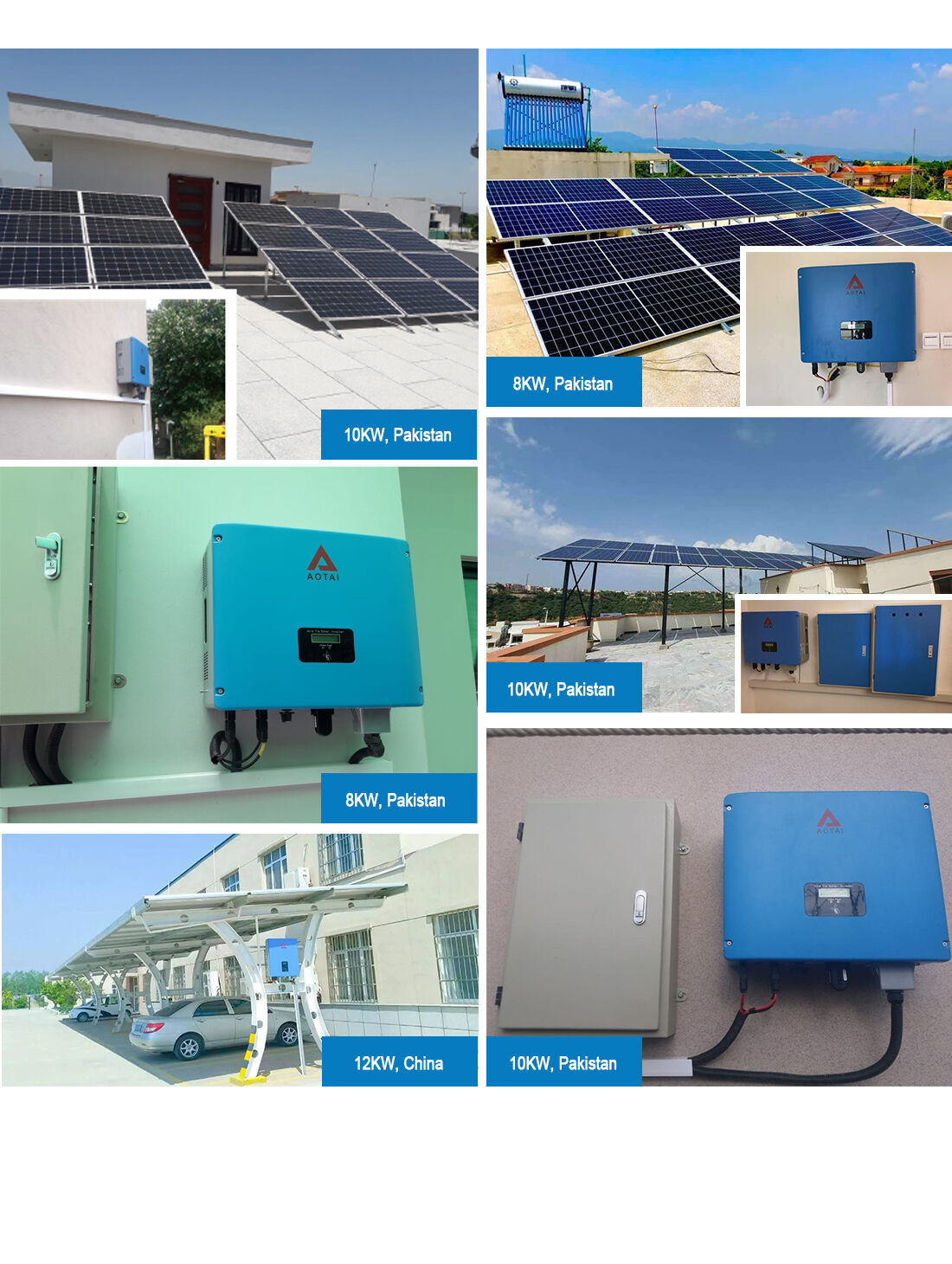

8 10 12.jpg
