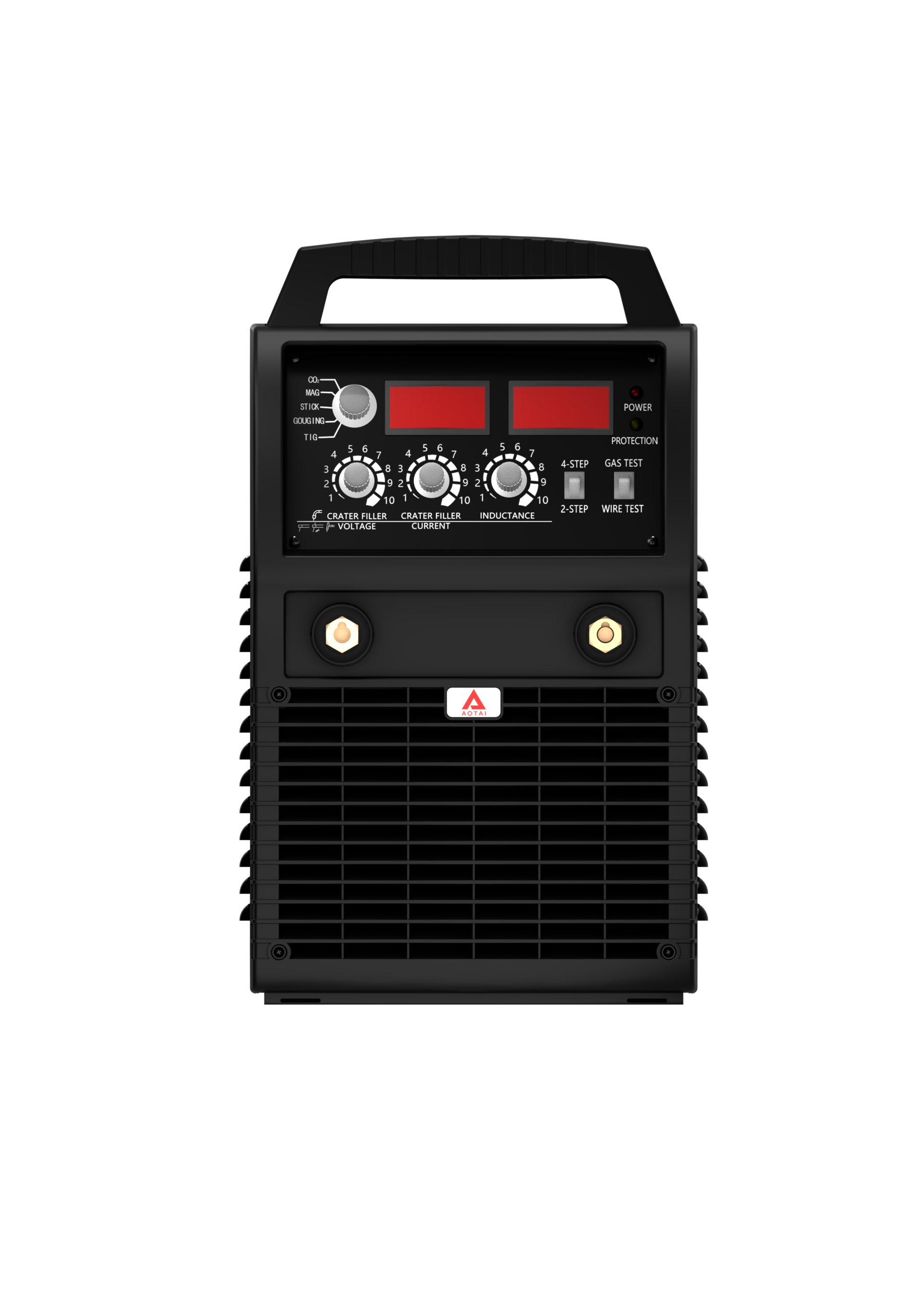

MIG-250/350/500/630

The most simple MIG/MAG welding machine provides reliable operation


Output t35.png t33.png 20210929155048852.jpg@!jw1200       Input t39.png  60 .png       Process t26.jpg


Materials t45.png                                                                               20210929155047718.jpg@!jw1200

Share:

Inquiry
Features
Specification
Application
Accessories
Download
  • Beautiful weld formation: small welding distortion and high welding deposition rate

  • Slow wire feeding: easy for arc starting

  • Ball removing function: ensure stable arc-stopping performance

  • Less spatter: advanced waveform control technology

  • Continuous adjustment: for current and voltage in a wide range

  • Continuous welding: keep welding for a long time with a high duty cycle

  • Digital display: accurate parameters preset and easy to operate

  • Different welding wires: applicable for solid and flux-cored wires


MIG250MIG350MIG500MIG630
Rated input voltage/frequency (Hz)3 phase, 440-480V±10%, 60Hz
Rated input capacity (KVA)8.512.72333.6
Rated input current (A)10.2-11.415.3-16.727.7-30.240.4-44
Duty cycle (40̊C)60%@250A60%@350A100%@500A100%@630A
OCV (V)55708295
Adjustable current range (A)40-25060-35060-50060-630
Adjustable voltage range (V)14-3014-4014-50
Trigger mode2 /4T2T2T/4T
Wire size (mm)0.8, 1.00.8, 1.0, 1.21.0,1.2,1.6
Protection classIP21SIP23
IP21
Insulation classH
Dimension (mm)495*232*495500*272*495655*324*546655*324*546708*322*584
Weight (kg /lb)20 /44.230 /66.340 /88.350 /110.360 /132.4

MIG250 350.jpg


  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Gas-cooled (or water-cooled) torch L=3m

  • 1 Wire feeder with Europe connection

  • 1 wire feeder cable L=5m
