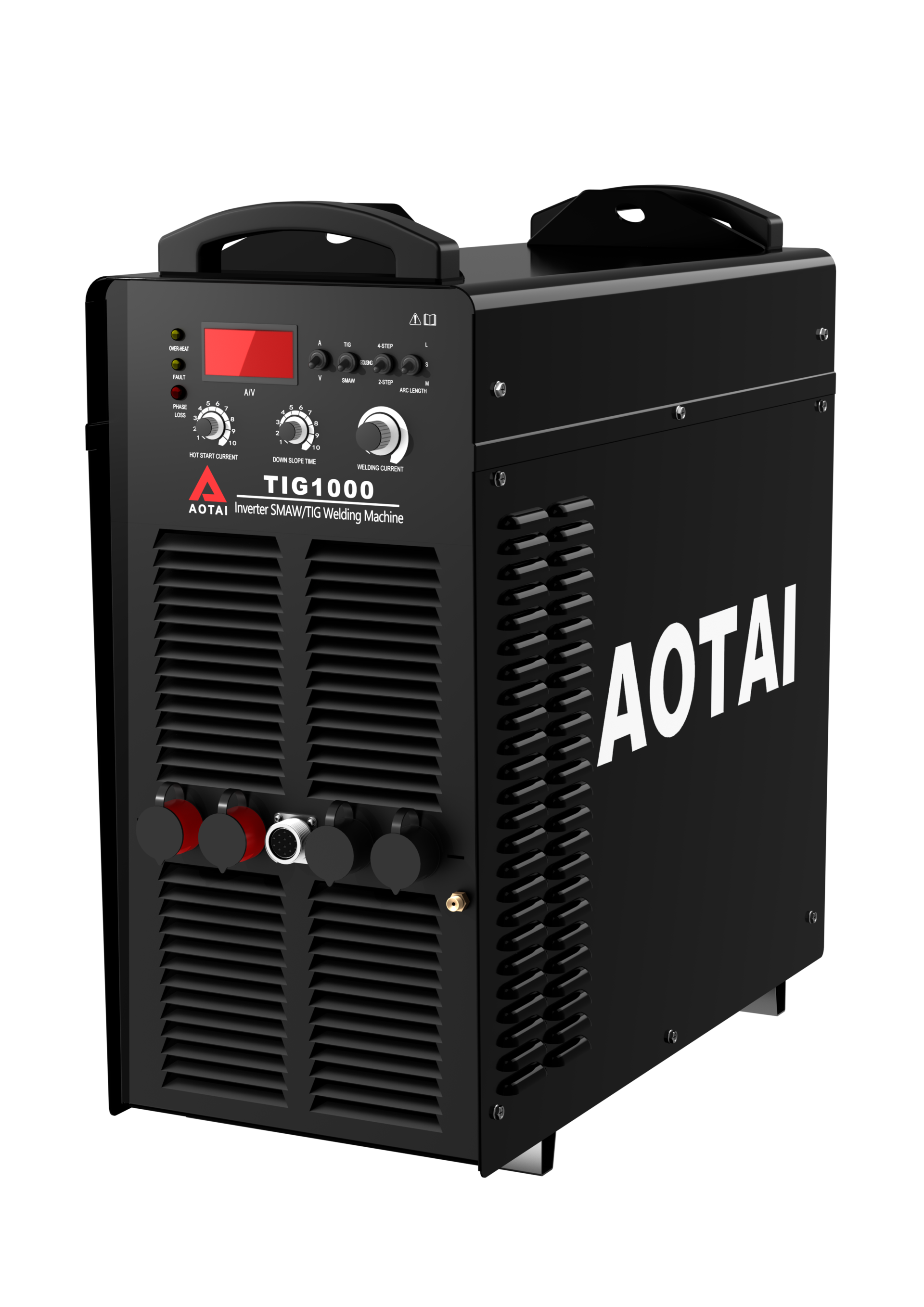

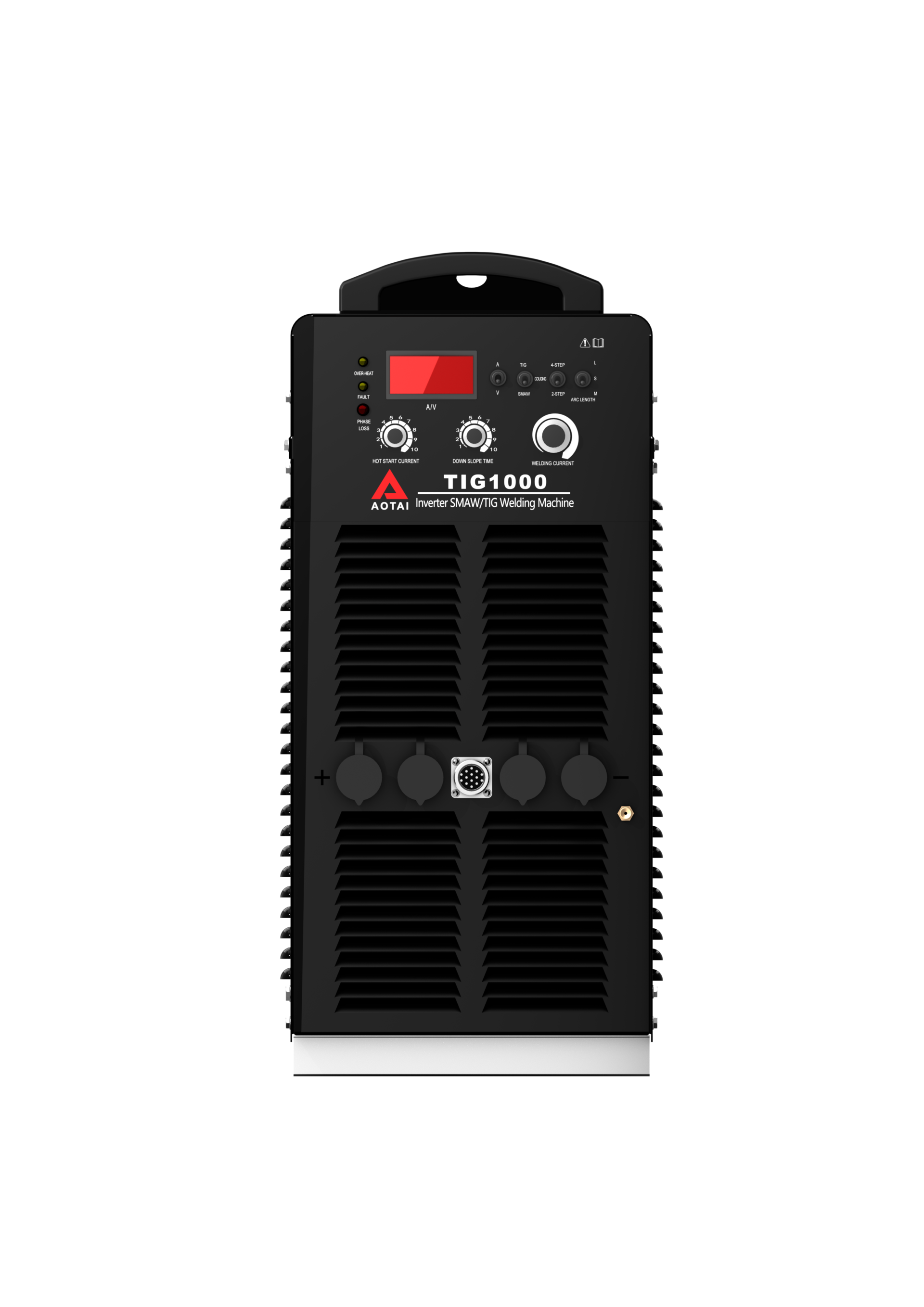

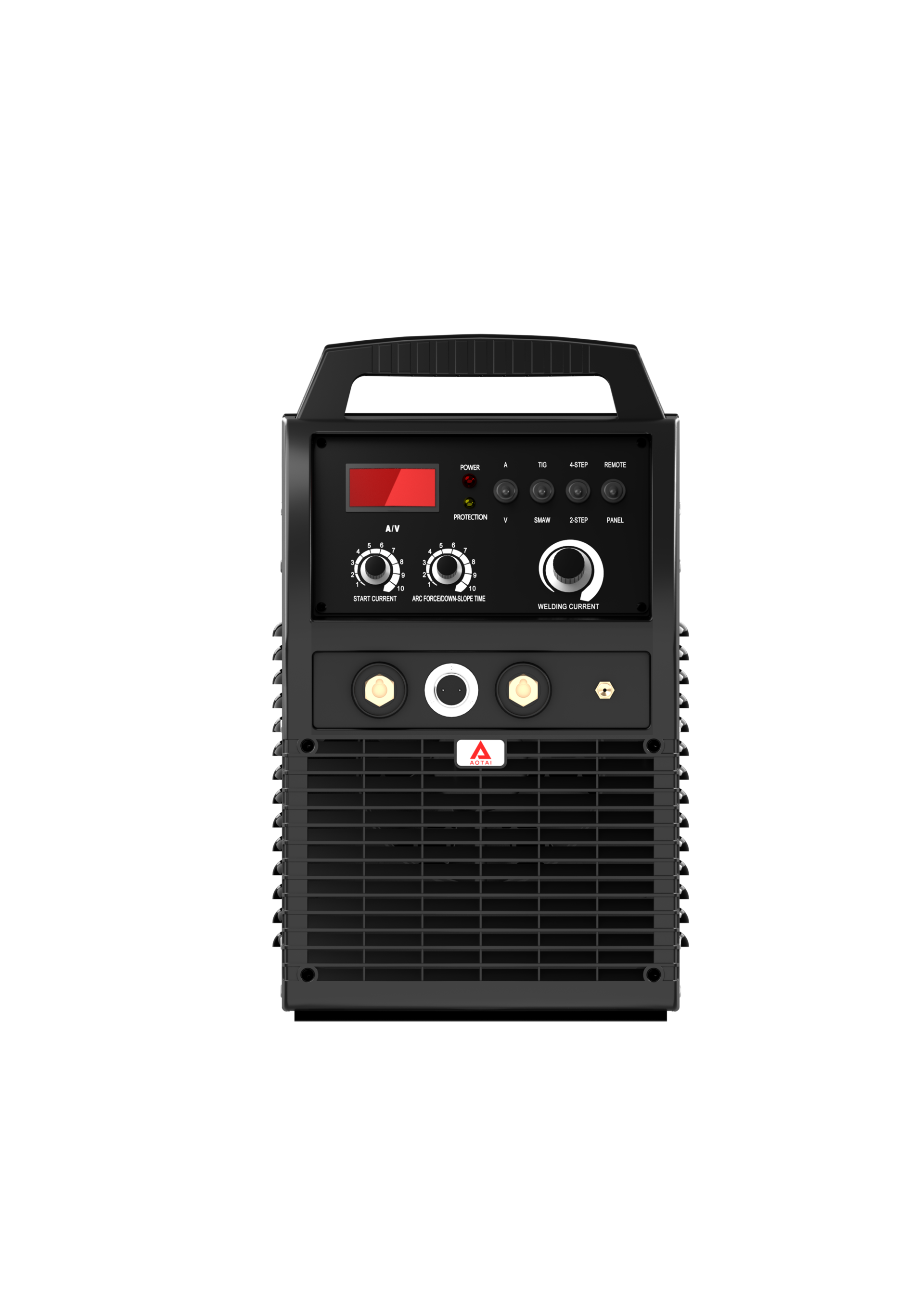

TIG-400/400II/500/630/1000/1250

TIG-400/400II/500/630/1000/1250

TIG series is analog DC TIG models with soft switch  inverter technology, specially designed for harsh industrial environment. Friendly user operation interface and stable ARC for manual welding.

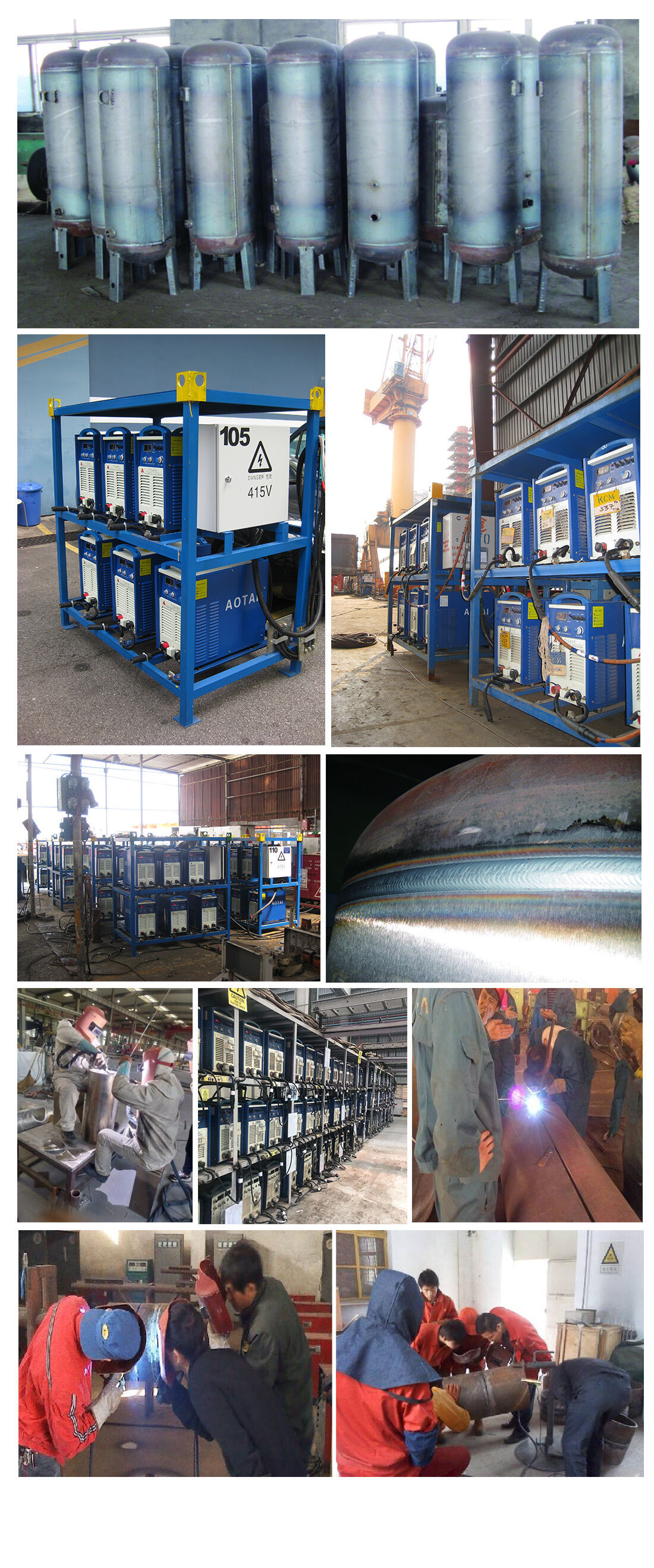

TIG series provides high performance DC TIG and stick welding for alloy fabrication, pipe welding and workshop maintenance.

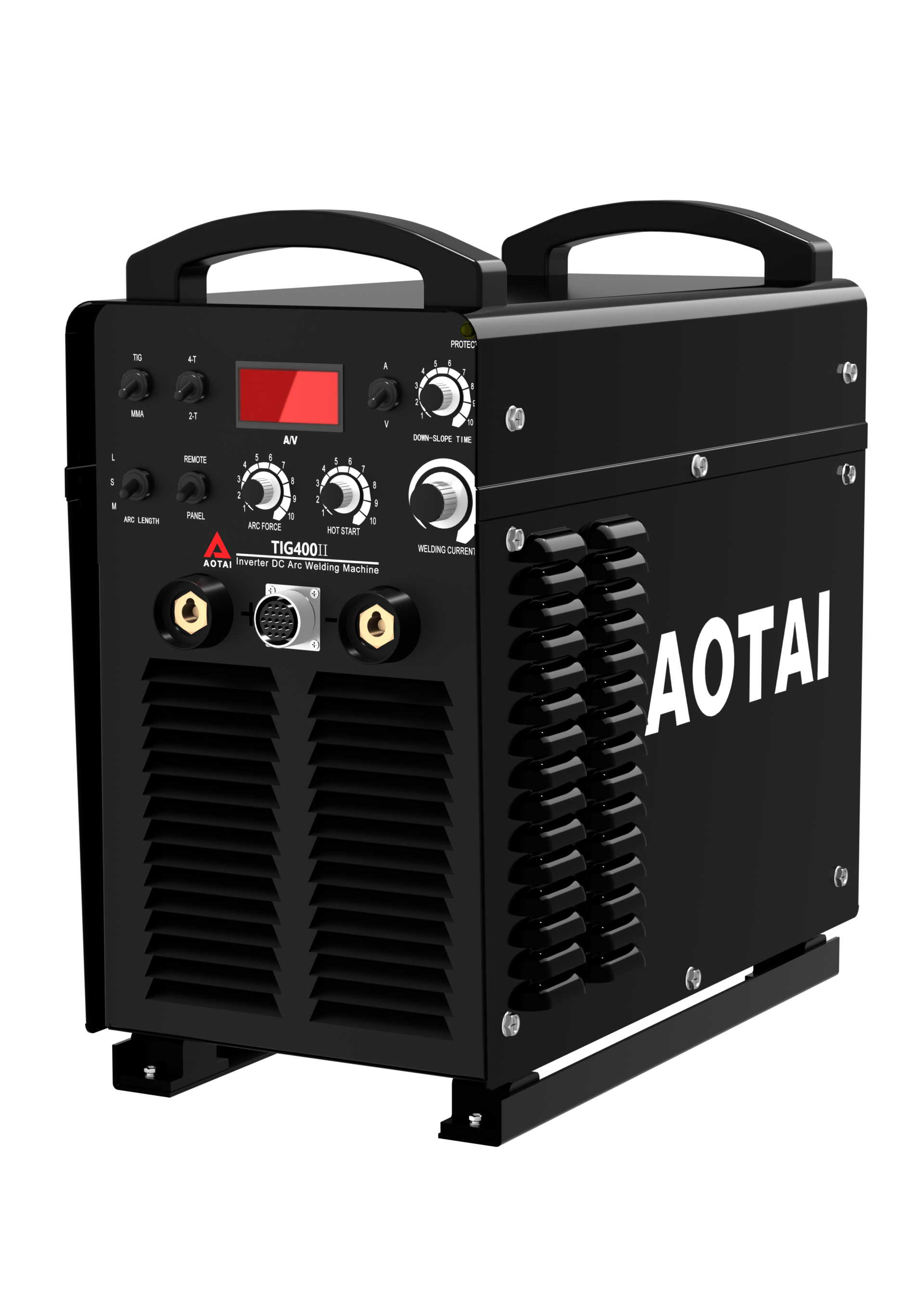

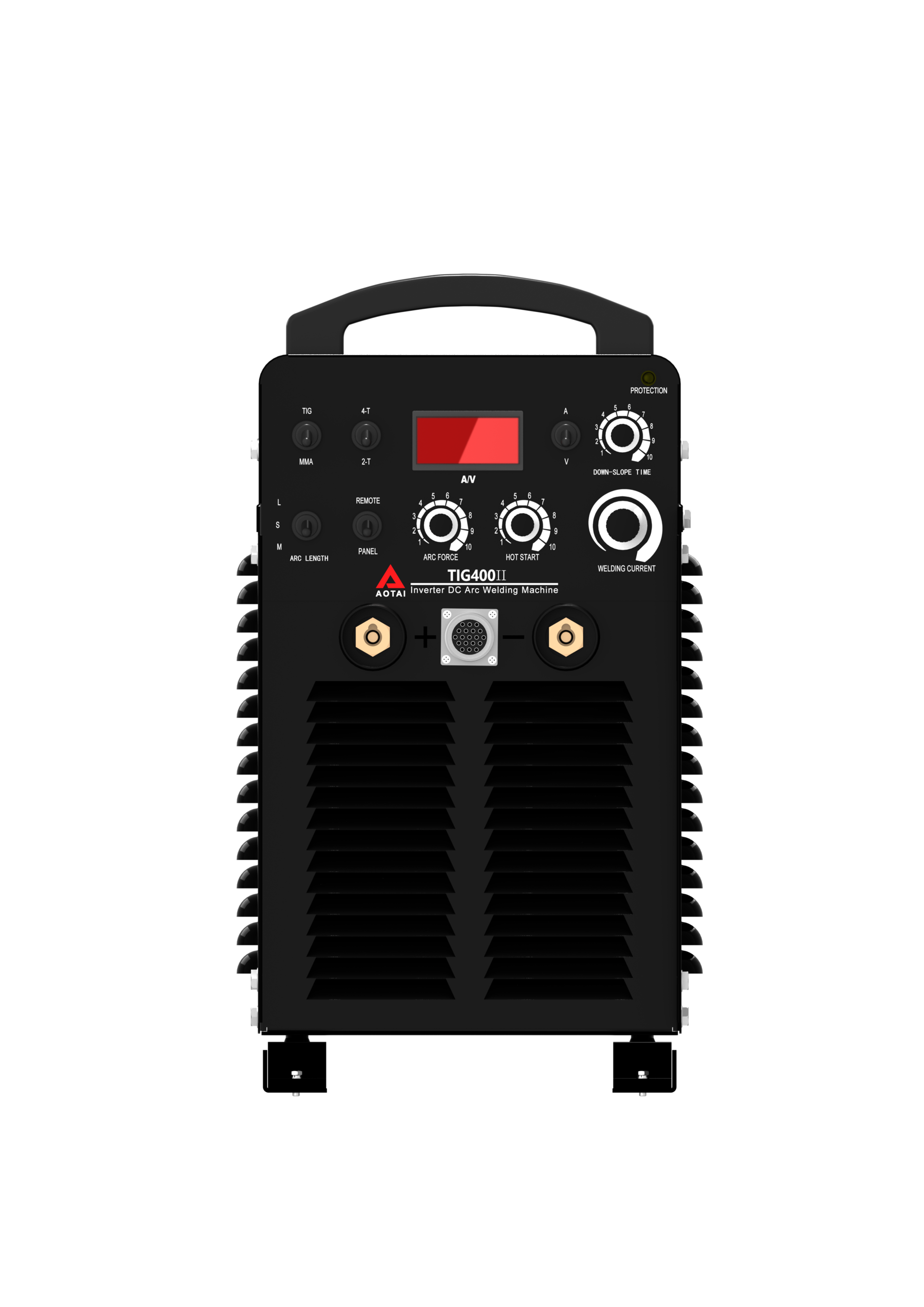

TIG400II is also suitable for great cellulose electrode welding application. current ≥630A, 100% duty cycle and can perform Carbon Arc Gouging feature.


Output TIG-400/400II/500/630/1000/1250 TIG-400/400II/500/630/1000/1250 TIG-400/400II/500/630/1000/1250       Input TIG-400/400II/500/630/1000/1250  TIG-400/400II/500/630/1000/1250       Process TIG-400/400II/500/630/1000/1250  TIG-400/400II/500/630/1000/1250


Materials TIG-400/400II/500/630/1000/1250 TIG-400/400II/500/630/1000/1250 TIG-400/400II/500/630/1000/1250                                                                        TIG-400/400II/500/630/1000/1250


Share:

Inquiry
Features
Specification
Application
Accessories
Download
  • Adjustable parameters: arc force, hot start, and down-slope time

  • Work together with generator: optional

  • Remote control: wired or wireless

  • HF/Scratch TIG: 100% arc starting success rate

  • Digital display

  • Trigger mode: 2-Step or 4-Step

  • Welding with CEL electrodes: for TIG400II



TIG400TIG400IITIG500TIG630TIG1000TIG1250
Rated input voltage/frequency (Hz)3 phase, 480V±10%, 60Hz
Rated input capacity (KVA)18.718.724.634.254.666.5
Rated input current (A)22.522.529.641.265.780
Duty cycle (40̊C)60%@400A60%@400A60%@500A100%@630A100%@1000A100%@1250A
OCV (V)71 8584958395
Output current (A)20-40020-40020-50050-63060-100060-1250
Arc ignition methodHF /Contact
Trigger mode2/4T
Efficiency89%
Protection classIP23IP21S
Insulation classH
Dimension (mm)655*324*546576*297*557655*324*546686*322*584767*352*757767*352*802
Weight (kg /lb)43 /9543 /9550 /110.458 /128.195 /209.8100 /220.9



TIG-400/400II/500/630/1000/1250


  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Welding cable L=3m

  • 1 Ground cable L=3m

  • 1 TIG torch
