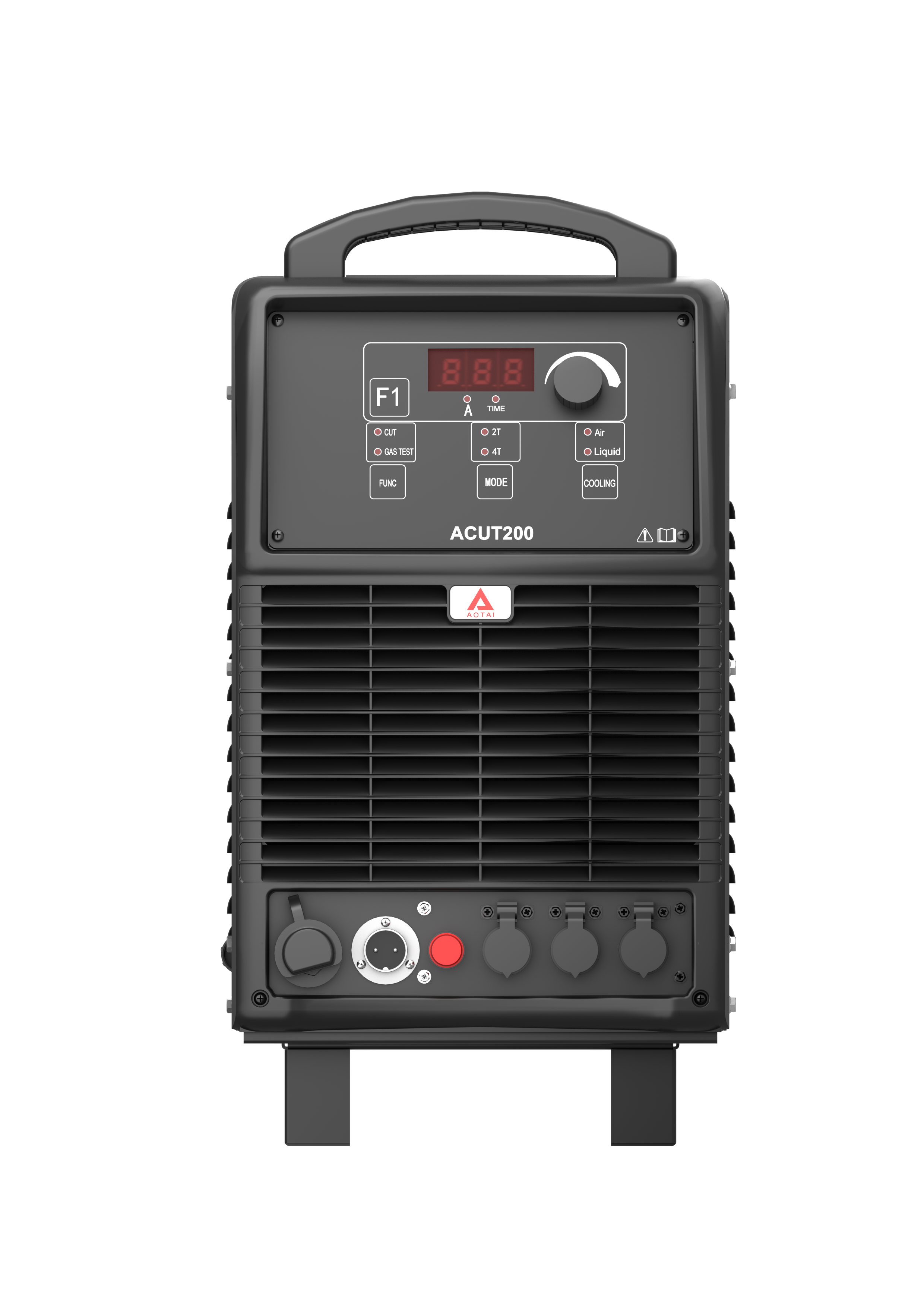

ACUT-160/200

ACUT-160/200 is invented for professional use in heavy duty application. ACUT power source can be used for manual cutting with HF ignition to provide best arc start and avoid defect in arc start process. ACUT series can show best result for cutting steel with thickness up to 60 mm.

Output Input Process

Materials

Inquiry

Features

Specification

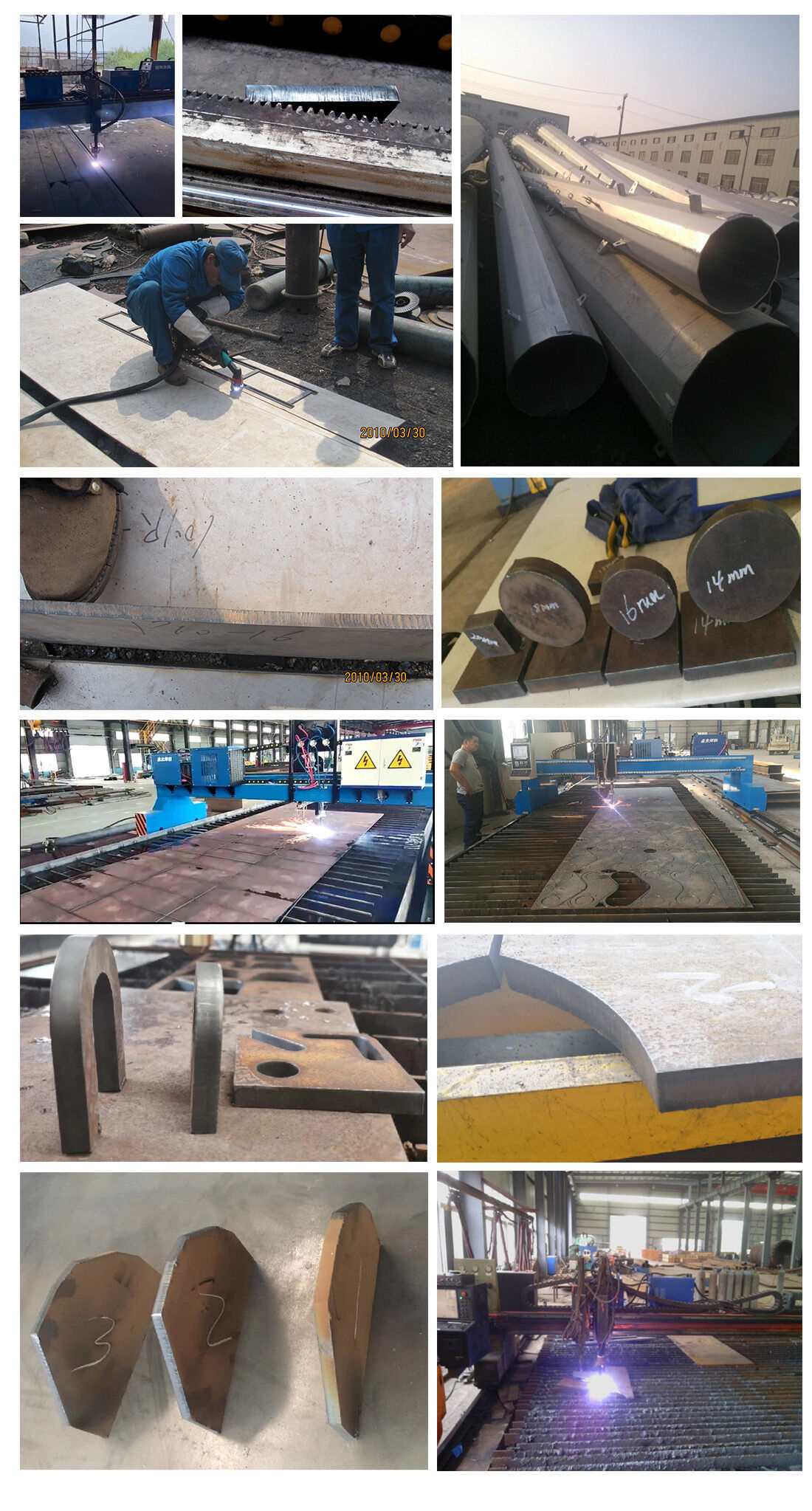

Application

Accessories

Download

Excellent cutting ability: concentrated energy ensures smooth and neat cutting surface
Multiple protection: ensuring stable operation of air compressor
CNC interface: CNC interface and multiple functions make it enjoy great popularity
Outstanding cut thickness: as for carbon steel cutting, an edge starts is appicable for no more than 40mm, a pierce starts is applicable for no more than 20mm
Long-cable cutting torch: up to 15m
Easy arc starting: the maximum arc starting height is 10mm

	ACUT160	ACUT200
Rated input voltage/frequency (V/Hz)	3 phase, AC480V±10%, 60Hz
Rated input capacity (KVA)	30	34
Rated input current (A)	34	43.5
Duty cycle (40℃)	100%@160A	100%@200A
OCV (V)	320
Arc ignition method	Special HF
Output current rang (A)	30-160	30-200
Maximum cutting thickness (mm)	60
Clean cut thickness (mm)	1-30
Air pressure (Mpa)	0.4-0.55
Water flow rate (L/min)	250
Protection class	IP21
Insulation class	H
Dimension (mm)	660320560	720330630
Weight (kg /lb)	52 /114.6	58 /128.1

1 Power source
1 Connected primary cable L=3m
1 Ground cable L=3m
1 Pressure-reducing valve
1 Plasma torch
1 Water cooler 20L
