Matching Welding Machine

‹

AMIG350-LST-R

›

‹

  • AMIG350-LST-R

›

AMIG350-LST-R

AMIG350LST-R is a welding equipment with high efficiency, high quality and low spatter. It precisely controls metal transfer through high-speed DSP signal processing, in order to realize spatter-free welding, reduce labor cleaning cost and improve deposition rate. It comes with three technologies. Furthermore, it is the best choice for the applied industries of galvanized carbon steel sheet and medium plate.


Output AMIG350-LST-R AMIG350-LST-R AMIG350-LST-R AMIG350-LST-R       Input AMIG350-LST-R  AMIG350-LST-R       Process AMIG350-LST-R  AMIG350-LST-R


Materials AMIG350-LST-R AMIG350-LST-R AMIG350-LST-R                                                                        AMIG350-LST-R  AMIG350-LST-R

Share：

Inquiry
Features
Specification
Application
Accessories
Download

  • Full digital control: MCU+DSP core, high-speed control of metal transfer cooperates with chopping wave technology to achieve an advanced welding process

  • Multi-process: LST/CV MIG, PULSE MIG(AMIG350RPL)

  • LST - low spatter technology: over 80% reduced spatter, reduced labor cost

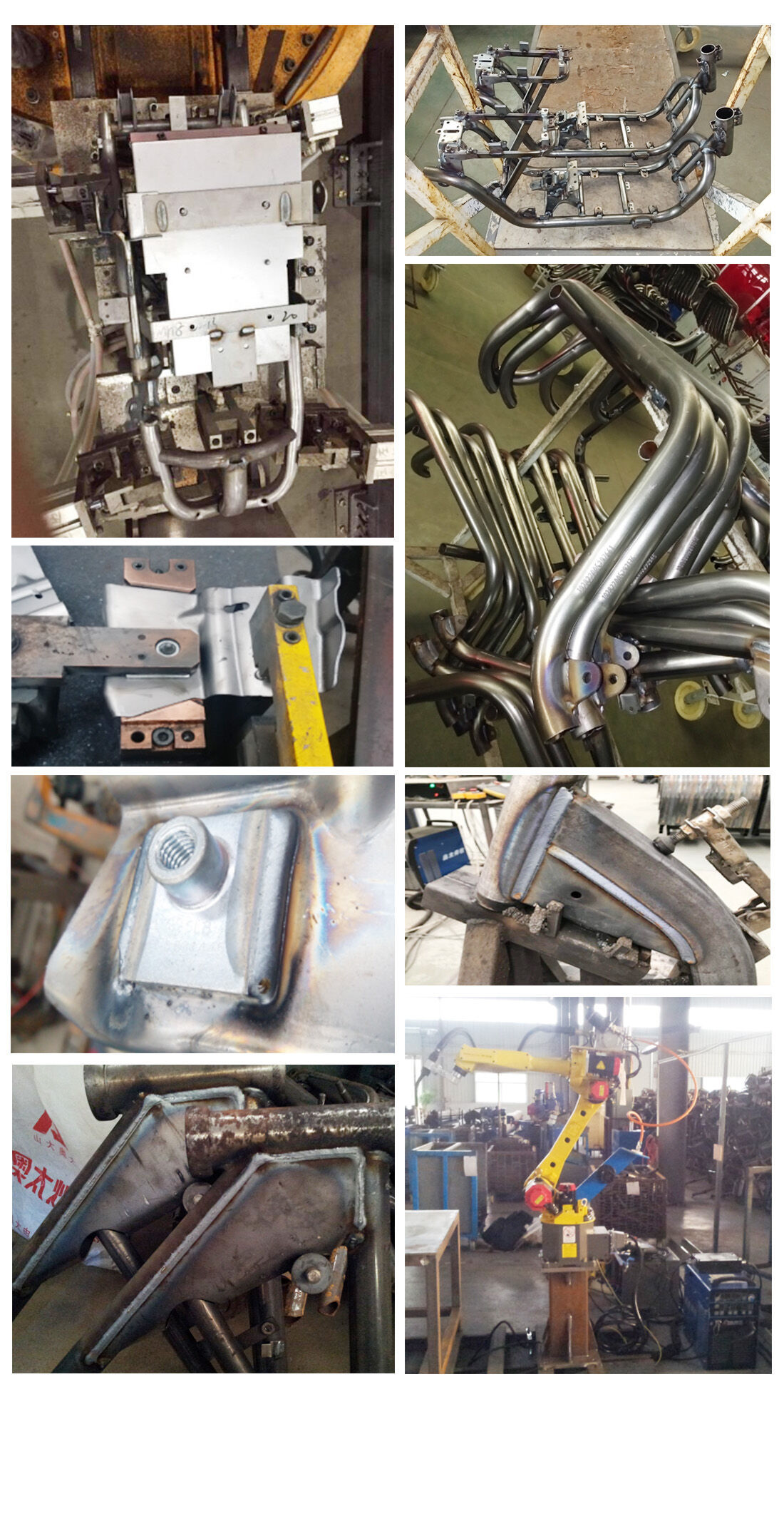

  • Sheet welding expert: 0.7mm thick carbon steel sheet, outstanding galvanized sheet welding performance

  • One-key operation: save and recall 100 sets of parameters


AMIG350-LST-R
Rated input voltage/frequency (Hz)3 phase, 480V±10%, 60Hz
Rated input capacity (KVA)12.7
Rated input current (A)15.4
Duty cycle (40̊C)60%@350A
OCV (V)72
Adjustable current range (A)40-350
Adjustable voltage range (V)14-40
Trigger mode2 /4T, Spot, Repeat
Wire size (mm)0.8, 1.0, 1.2
Protection classIP23S
Insulation classH
InterfaceAnalog communication /Devicenet, CAN, 485, digital communication
Dimension (mm)655*324*546
Weight (kg /lb)55 /121.3



AMIG350-LST-R
