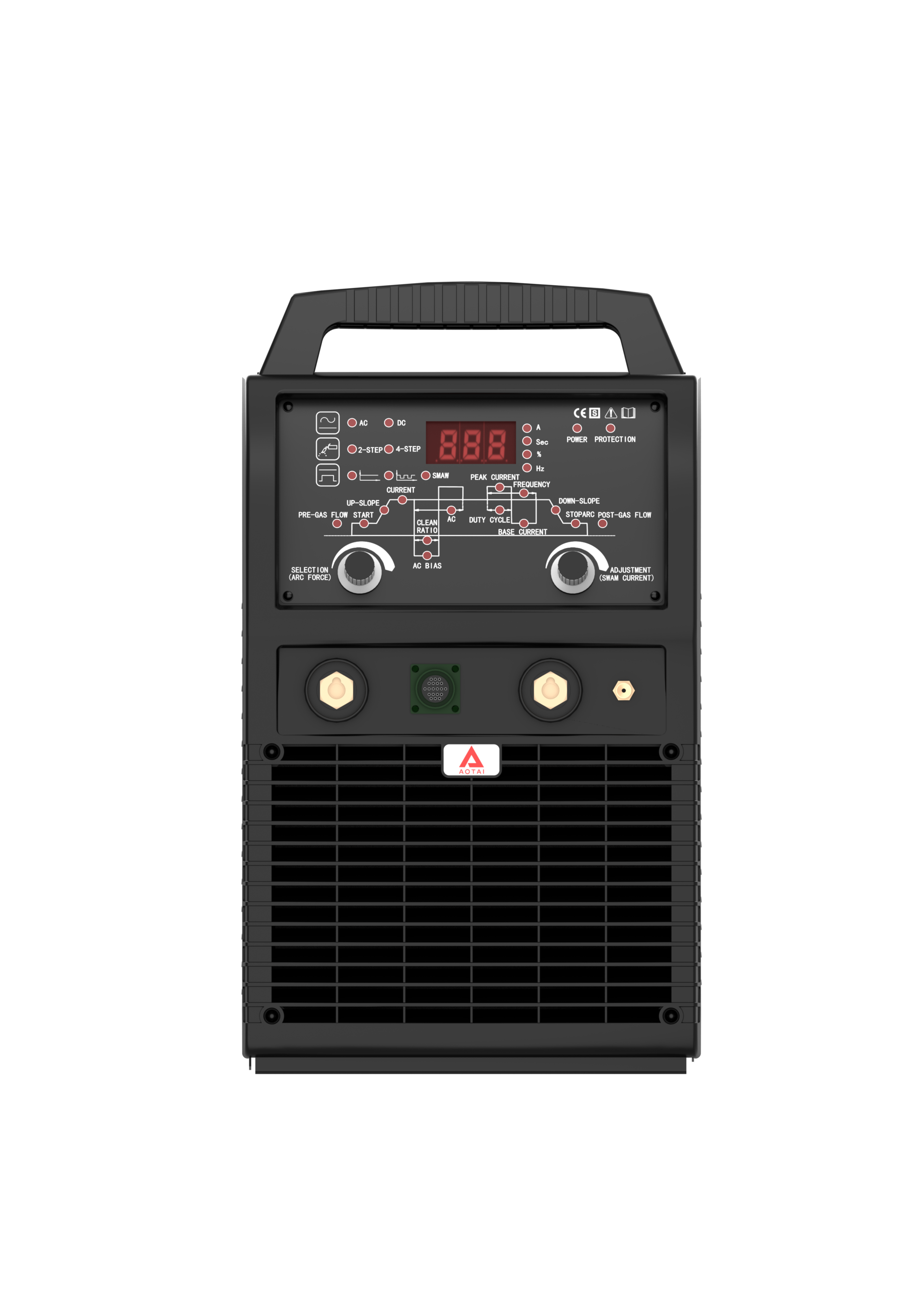

ATIG-PAC-315/400/630

ATIG-PAC Series is digital models with high end MCU technology, suitable for both automatic application and manual welding. It offers multiple parameters adjustment to ensure perfect welding for stainless steel (DC) welding and Aluminum (AC) welding.


Output ATIG-PAC-315/400/630 ATIG-PAC-315/400/630 ATIG-PAC-315/400/630 ATIG-PAC-315/400/630       Input ATIG-PAC-315/400/630  ATIG-PAC-315/400/630       Process ATIG-PAC-315/400/630  ATIG-PAC-315/400/630


Materials ATIG-PAC-315/400/630 ATIG-PAC-315/400/630 ATIG-PAC-315/400/630 ATIG-PAC-315/400/630 ATIG-PAC-315/400/630                                                               ATIG-PAC-315/400/630

Share：

Inquiry
Features
Specification
Application
Accessories
Download

  • Precise adjustment: all parameters can be precisely adjusted in real time

  • Adjustable MMA parameters: arc starting current and arc force, easy for arc ignition

  • Remote control: current

  • Synchronous mutual arc feature

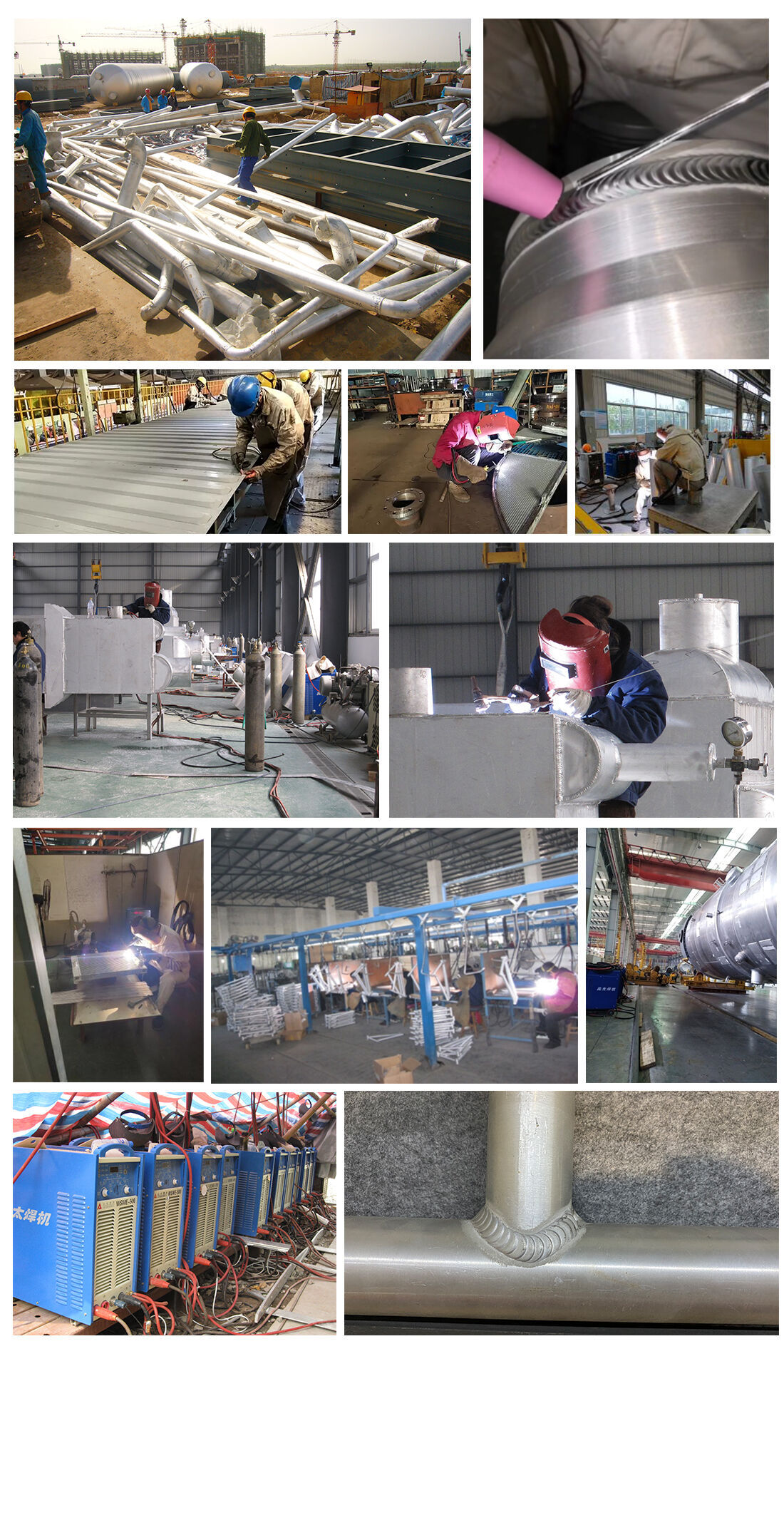

  • Wide range of applicable industries: nuclear power construction, pipeline construction, shipbuilding, high-pressure vessels, and so on

  • Wide range of applicable materials: stainless steel, carbon steel, copper, titanium, and aluminum

  • Adjustable AC parameters: to ensure a good purging effect

  • AC MMA process: optional

  • Work together with wire feeder: for customized models



ATIG315PACATIG500PACATIG630PAC
Rated input voltage/frequency (Hz)3 phase, 480V±10%, 60Hz
Rated input capacity (KVA)13.625.434.8
Rated input current (A)16.4
30.641.9
Duty cycle (40̊C)60%@315A60%@500A60%@630A
OCV (V)(MMA /TIG)45 /7945 /7742 /79
MMAOutput current range (A)5-31510-50010-630
Arc force (A)10-200
TIGPre-gas/post gas (s)0.1-9.99/0.1-60
Initial/final current (A)5-315 /5-31510-500 /20-50010-630 /20-630
Up-slope/down-slope (s)0.1-10 /0.1-150.1-10 /0.1-150.1-10 /0.1-15
Peak current (A)5-31510-50010-630
Pulse frequency (Hz)0.2-20
Pulse duty cycle15%-85%
AC frequency (Hz)20-20020-100
AC balance-40%±40%
Protection classIP23IP21
Dimension (mm)655*324*546665*353*778690*385*825
Weight (kg /lb)50 /110.377 /17090 /198.6



ATIG-PAC-315/400/630


  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Welding cable L=3m

  • 1 Ground cable L=3m

  • 1 TIG torch (water cooled)

  • Water cooling machine (Optional)

  • Trolley (Optional)

  • Remote control unit (Optional)

  • Foot pedal (Optional)
