Solar Inverter

‹

›

‹

  • ASP-50/60KTLC

›

ASP-50/60KTLC

Share：

Inquiry
Features
Specification

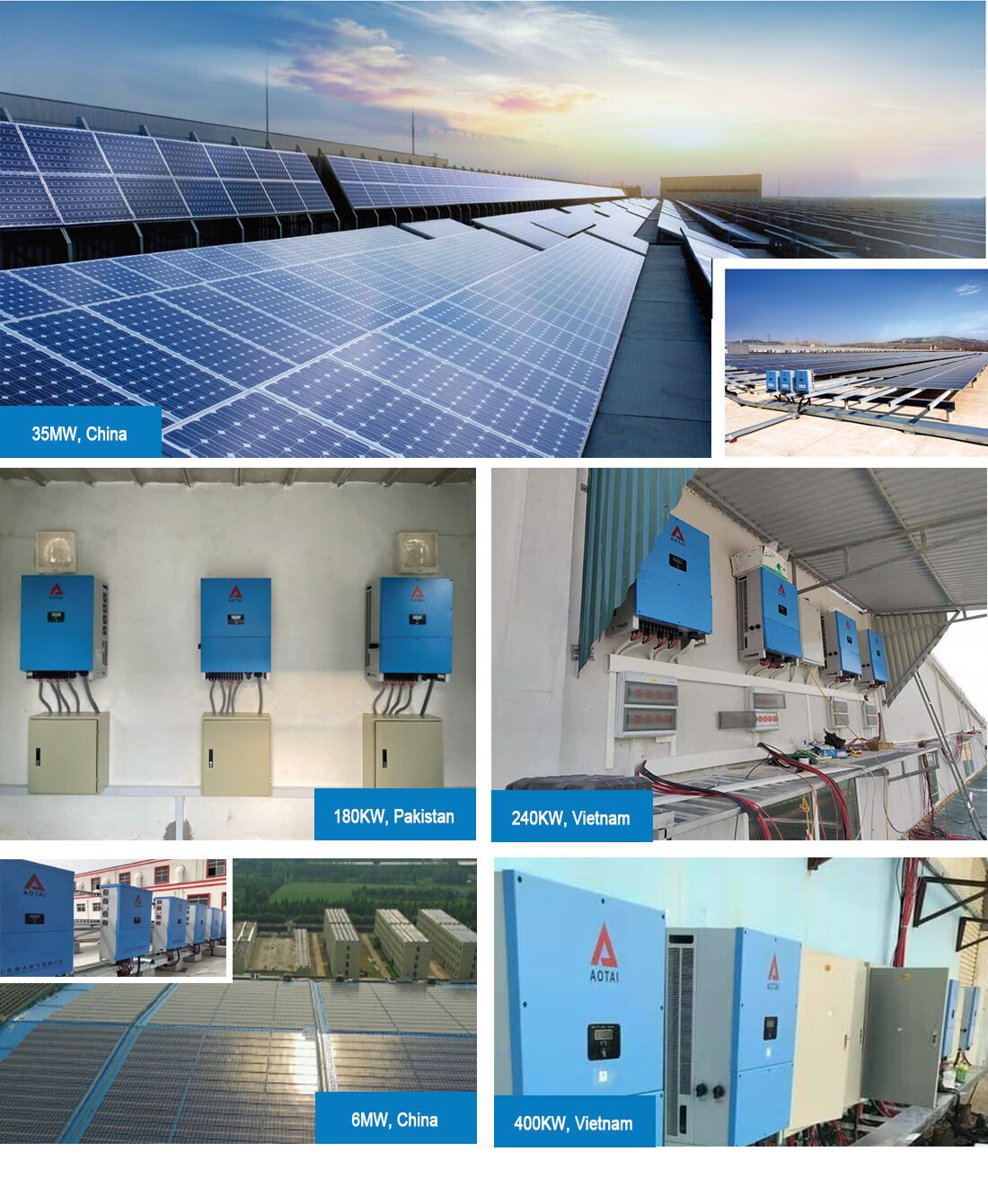

Application
Download

Flexible design

Multi-communication interface: RS485, GPRS (optional),Wifi (optional)

DC breaker, easy to maintain and safe to use

Integrated functions of combiner box& DC lightning protection, reduce system cost for users


Efficient conversion

Transformerless, max.efficiency is up to 98.9%;

Euro. efficiency is up to 98.5%

Total current THD <2%

Three-level SVPWM control technology, increase DC voltage utilization


Grid friendly

LVRT HVRT function

Adjustable reactive power, power factor from 0.8 leading to 0.8 lagging

Active and passive antiislanding protection

Continuously adjustable active power(0- 100%)function


Excellent qualities

CQC Golden Sun Certification, TUV Certification, SAA

Certification, CE Certification

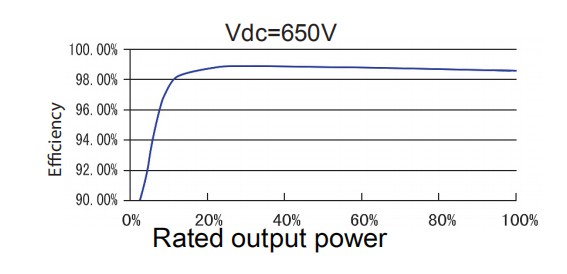

EFFICIENCY CURVE

图片 3.png



Model Name50KTLC60KTLC
Input
Max. DC input power  65000W72000W
Max. DC input voltage1000V
Max. DC input current120A(4X30A)
MPPT voltage range300~950V
Recommended MPP operating voltage650V
No.of MPPT4
Max. no. of strings per MPPT3
Output
Rated output power50000W60000W
Max. output power55KVA66KVA
Max. output current80A96A
Rated grid voltage400V
Grid voltage range310~480Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD< 2% (Under the rated power)
Power factor0.99(rated power) /0.8 leading ~ 0.8 lagging
DC current injection< 0.5% (Under the rated power)
System data
Max. efficiency98.7%98.9%
Euro. efficiency98.3%98.5%
Humidity range0-95% non-condensing
Cooling typeIntelligent forced air cooling
Temperature range-25~+60°C
Power consumption at night< 1W
Max. working altitude4000m(Operation with derating above 3000m)
DisplayTwo line LCD/Two LEDS/One voice operated switch
Communication interfaceRS485/GPRS(optional)/Wifi(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchYes
Mechanical data
Dimensions (WxHxD)670x960x300mm
Weight75Kg
Protection classIP65
Standard
Grid-connected standardNB/T32004-2018; GB/T19964-2012
Safety standardNB/T32004-2018; IEC 62109-1/2
Electromagnetic compatibilityIEC 61000-6-2/4
