Solar Inverter

‹

›

‹

  • ASP-5/6KTLD

›

ASP-5/6KTLD

Share：

Inquiry
Features
Specification

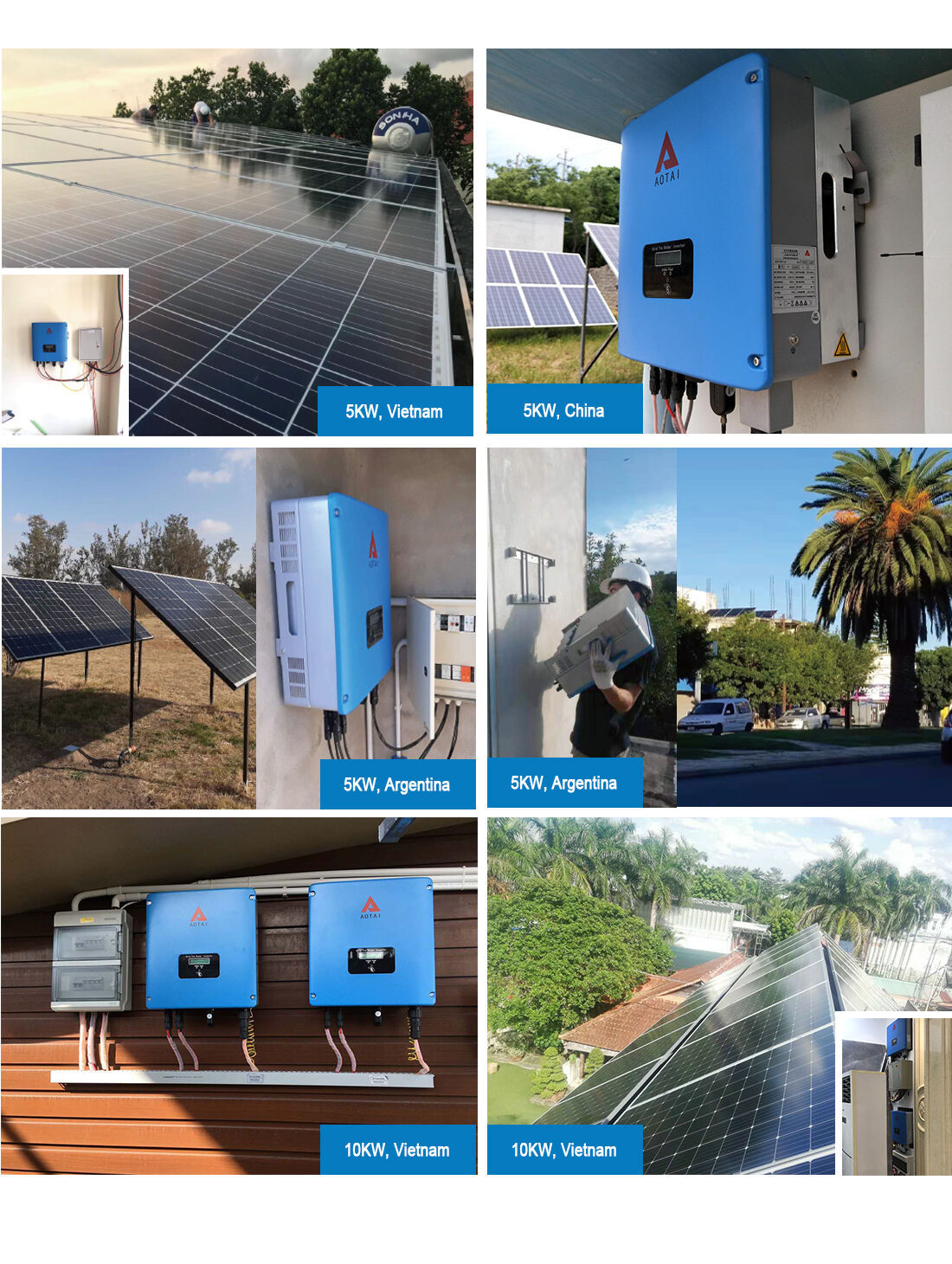

Application
Download

Flexible design

  • Small size, light weight, support manual installation reduce user installation and maintenance cost

  • Multi-communication interface:Rs485,

  • GPRS(optional),Wifi (optional )

  • DC breaker, easy to maintain ansafe to use

  • Convection without fan

  • Digital DSP control technology


Efficient conversion

  • Transformerless, max.efficiency is up to 98.1%;

  • Euro. efficiency is up to 97.5%

  • Total current THD <2%


Grid friendly

  • Active and passive antiislanding protection

  • Continuously adjustable active power (0~100%) function


Excellent qualities

  • CQC Golden Sun Certification, TUV Certification, SAA

  • Certification, CE Certification

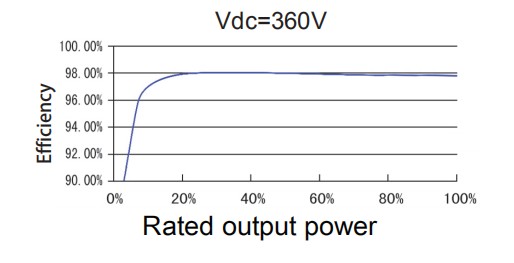

EFFICIENCY CURVE

图片 1.png



Model Name5KTLD6KTLD
Input
Max. DC input power  6500W7200W
Max. DC input voltage580V
Max. DC input current2X13A
MPPT voltage range80~550V
Recommended MPP operating voltage360V
No.of MPPT2
Max. no. of strings per MPPT1
Output
Rated output power5000W6000W
Max. output power5.5KVA6KVA
Max. output current25A27A
Rated grid voltage230V
Grid voltage range160~270Vac (adjustable)
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD< 2% (Under the rated power)
Power factor> 0.99 (Under the rated power)
DC current injection< 0.5% (Under the rated power)

System data

Max. efficiency98.1%
Euro. efficiency97.5%
Humidity range0-95% non-condensing
Cooling typeAir cooling
Temperature range-25~+60
Power consumption at night< 1W
Max. working altitude4000m (Derating above 2000m)
DisplayTwo line LCD/Two LEDS/One voice operated switch
Communication interfaceRS485/GPRS(optional)/Wifi(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchOptional
Mechanical data
Dimensions (WxHxD)377x430x180mm
Weight14Kg
Protection classIP65
Standard
Grid-connected standardNB/T32004-2018; GB/T19964-2012
Safety standardNB/T32004-2018; IEC 62109-1/2
Electromagnetic compatibilityIEC 61000-6-2/4






ASP-5/6KTLD.pdf
